Product Data:

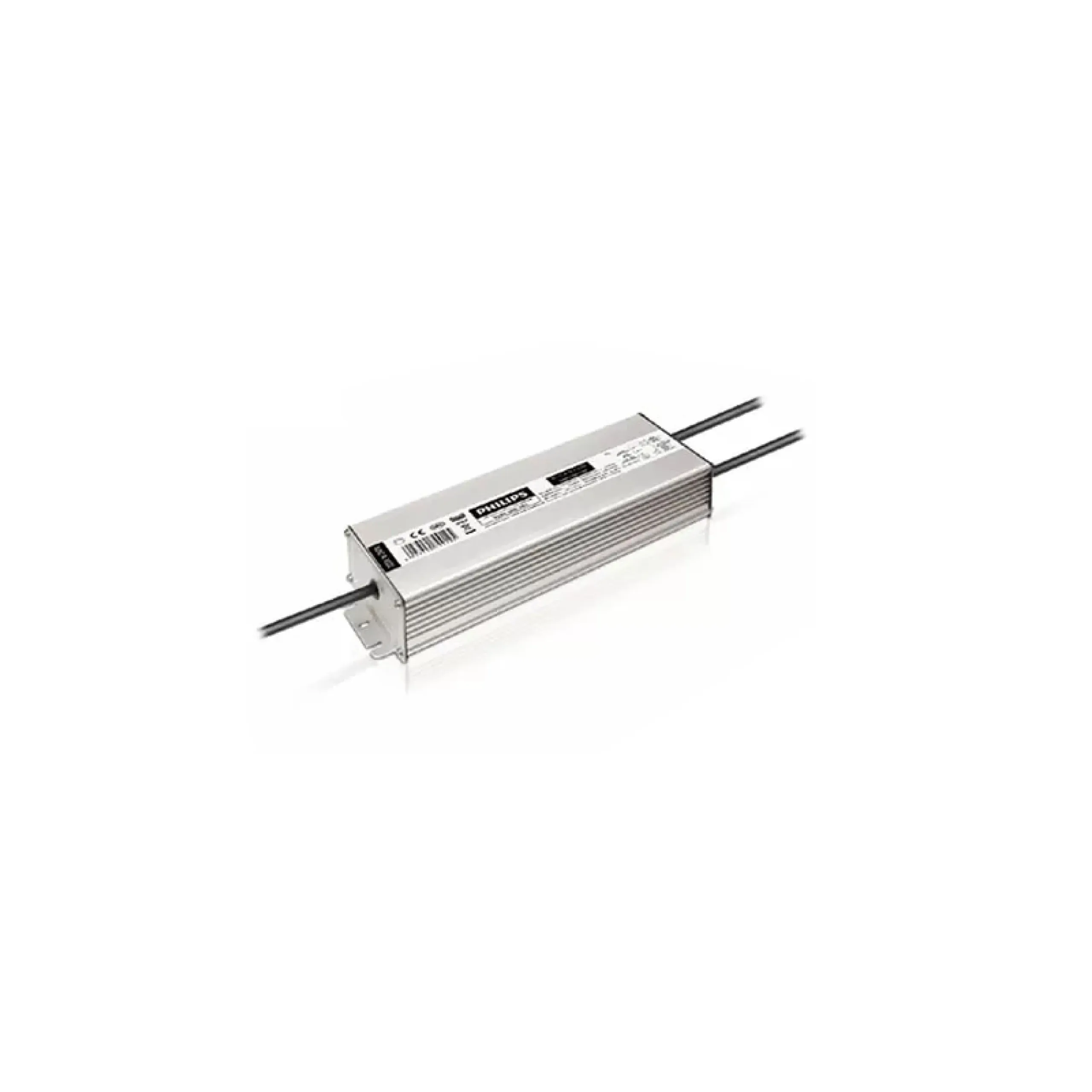

Model name:PHILIPS Outdoor Driver Xitanium 50W 0.7A-J CCC I42 G2 929000865408

12NC:929000865408

Output current: 700 mA

Output power:124.6 – 250 W

Output Voltage: 178 – 357V

Ambient temperature range: -40 °C to 55 °C

Dimmable: Yes

Control method: 1 -10V

Xitanium Outdoor LED Drivers Dimmable (1-10V) Xitanium Dim 250W 0.70A 1-10V 230V Q LED-based light sources are an excellent solution for outdoor environments. They are long-lasting and require low maintenance. However, to get the best out of the LEDs, these light sources require highly reliable and efficient LED drivers. Philips Xitanium Dimmable (1-10V) LED Outdoor drivers are specifically designed to deliver reliable performance and protection while meeting the strict performance, approbation and application requirements.

Benefits Reliability

• Robust design; capable of withstanding harsh outdoor conditions.

• Long lifetime and high survival rate.

• Superior surge immunity, enabling use in rigorous outdoor application.

• Backed by 5 year warranty from a company you can trust.

Affordable

• Component integration in advanced IC enables cost effective design.

• Proven robustness & reliability to secure the lowest luminaire maintenance vosts over time.

Easy to design-in

• Extreme compact size. fitting with varied luminaires.

• Easy to design-in based on the good thermal management and extra EMI margin

Features

• Proven robustness and reliable electronic driver design.

• Achieving highest efficiencies based on advance technology.

• Long lifetime • High surge immunity

• Suitable for Insulation Class I luminaires (built-in use only).

• ENEC, CB, CE and CCC certified.

Applications

• Road and street lighting

• Area and flood lighting

• Tunnel lighting

• High-bay lighting
